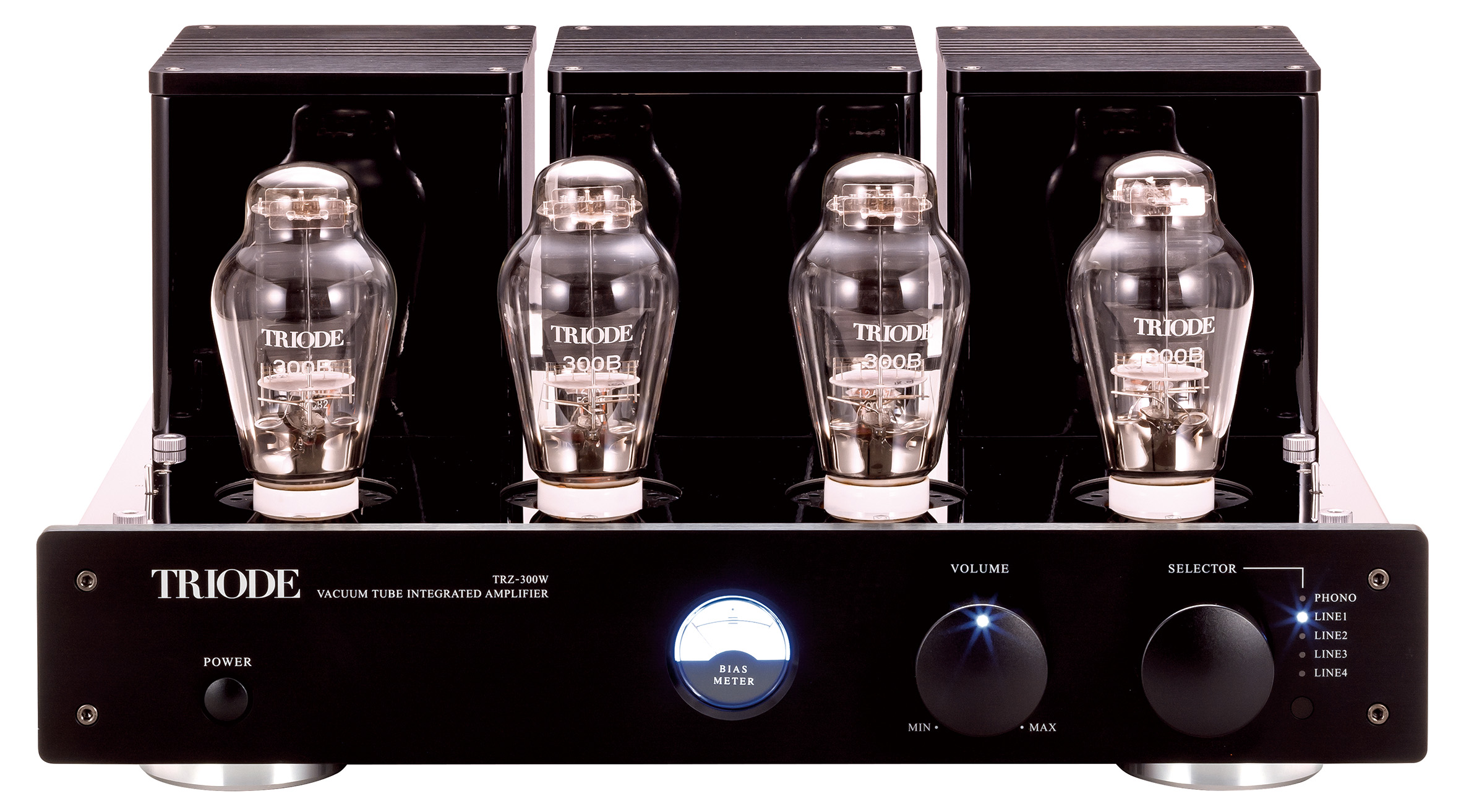

TRZ-300W NEW

300B class A parallel single ended integrated amplifier

Circuit system 300B class A parallel single ended integrated amplifier
Tubes 300B x 4, 12AX7 x 2, 12AU7 x 2
Bias Fixed bias, adjustable with bias meter
Output power 20W+20W at 8 ohms
Frequency response 5Hz-68kHz(-3dB)
S/N ratio 92dB
Input sensitivity LINE 480mV, MM 2.5mV, MAIN IN 920mV
Input impedance LINE 100k ohm, MM 47k ohm, MAIN IN 10k ohm

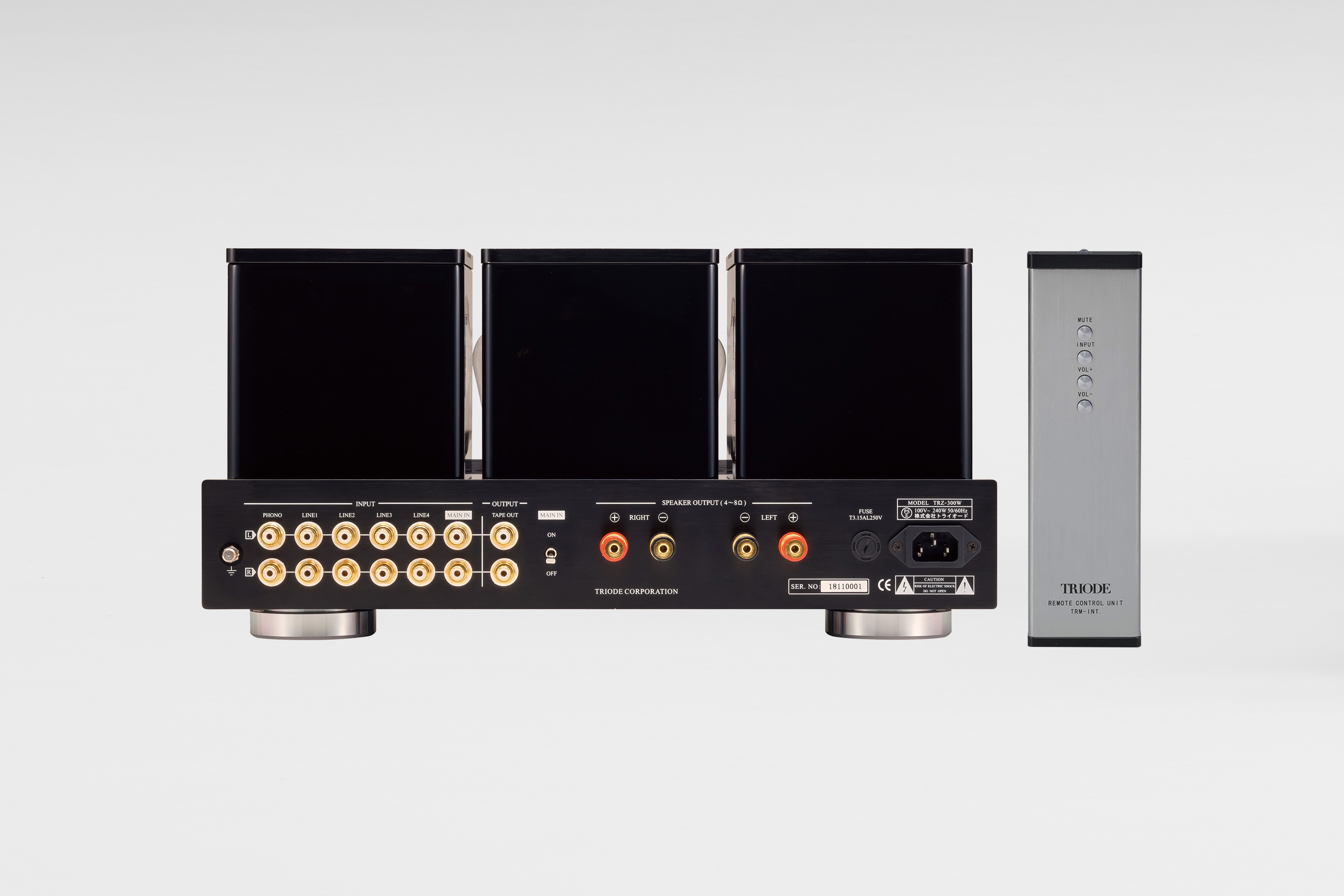

Input terminals RCA unbalanced x 6(LINE1-4 , MM x 1, MAIN IN x 1)
Output terminals TAPE OUT x 1(RCA unbalanced)
Speaker output terminals 4~8 ohms
Equipped components High quality speaker terminal
Other functions Remote control (Volume , Mute, Input select)
Bias adjuster with bias meter
Power consumption 240W (210W/No signal)
Dimensions W440mm x D370mm x H220mm
Weight 34.0kg

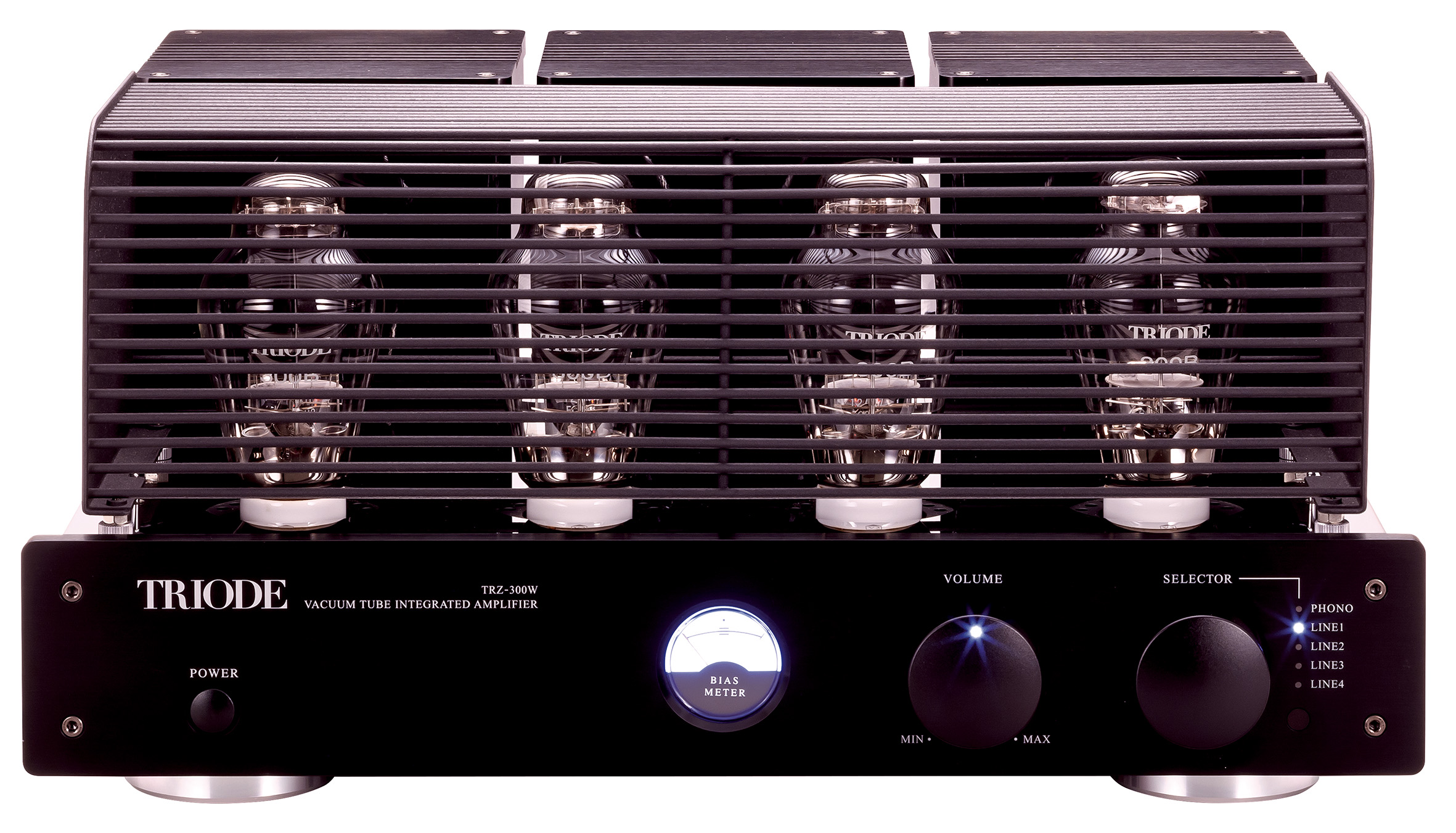

Accessories Tube cover , Remote control
