EVOLUTION NEW
KT88 class AB push-pull integrated amplifier
| Circuit system | KT88 class AB push-pull integrated amplifier |
| Tubes | KT88 x 4, 12AX7 x 2, 12AU7 x 2 |
| Bias | Fixed bias, adjustable with bias meter |
| Output power | 40W+40W at 8 ohms |
| Frequency response | 17Hz-63kHz(-2dB) |
| S/N ratio | 93dB |
| Input sensitivity | LINE 320mV, MAIN IN 670mV |
| Input impedance | LINE 100k ohm, MAIN IN 100k ohm |

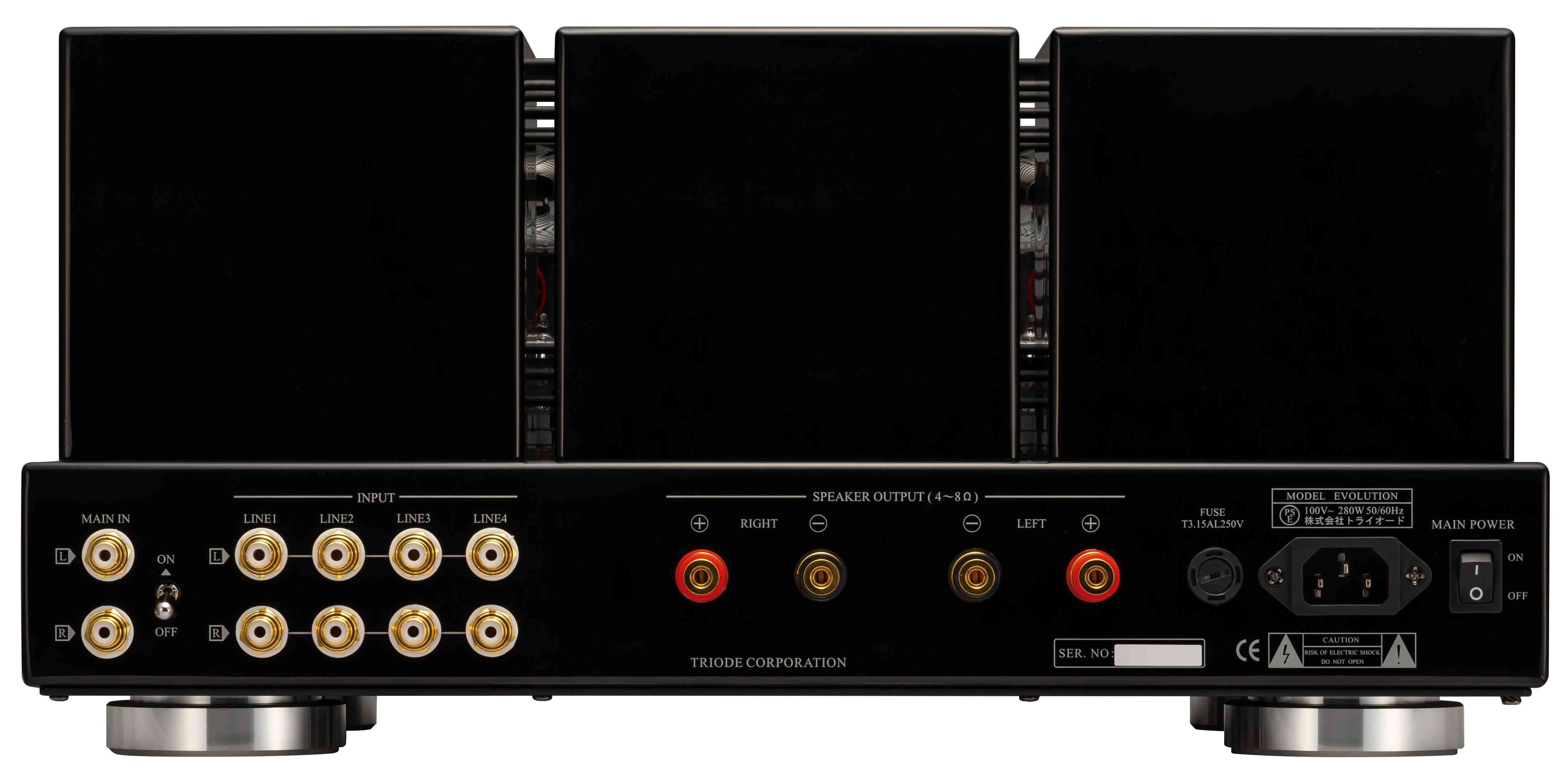

| Input terminals | RCA unbalanced x 5(LINE1-4 , MAIN IN x 1) |
| Output terminals | - |
| Speaker output terminals | 4 ~8 ohms |
| Equipped components | High quality speaker terminal |
| Other functions |

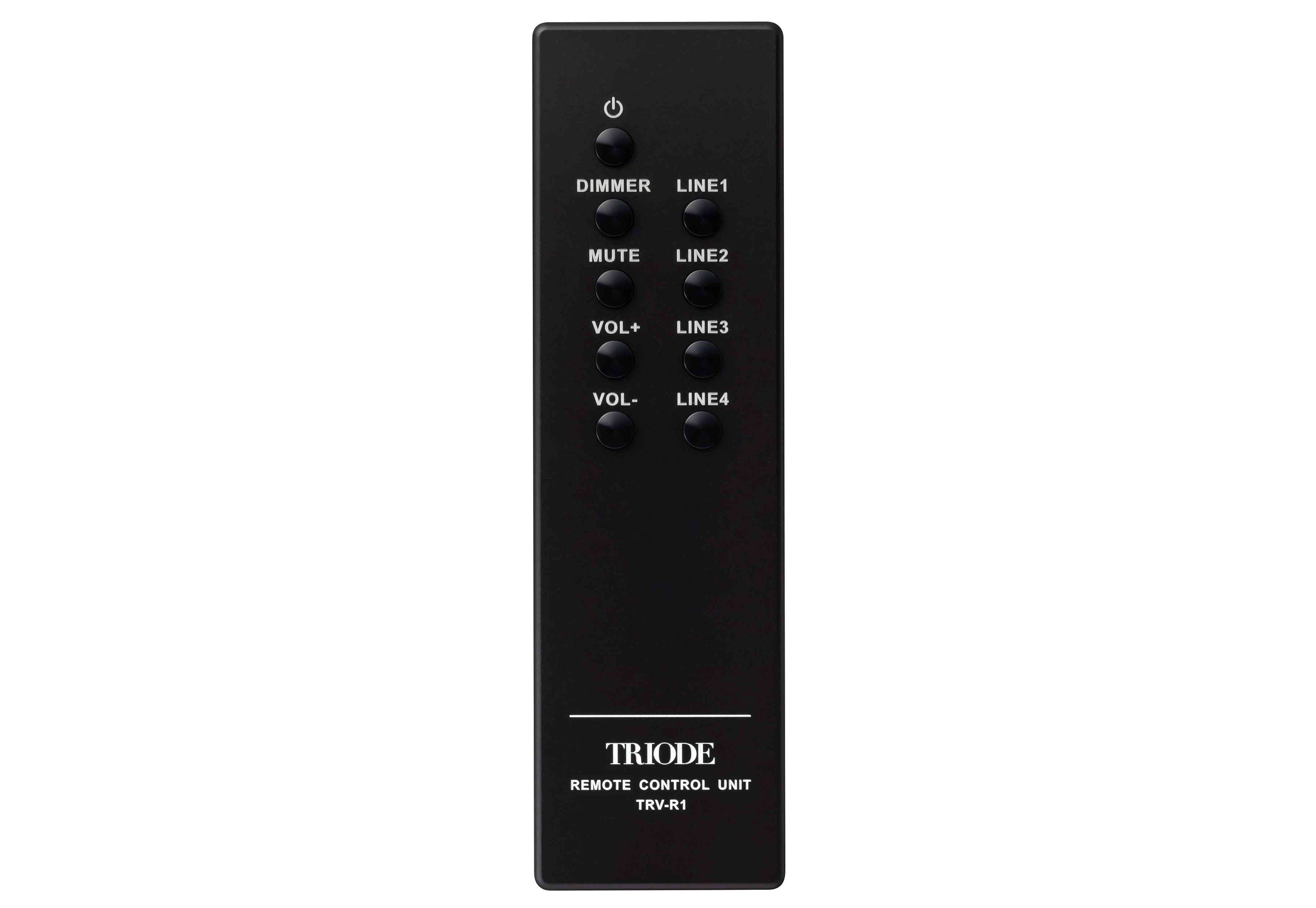

Remote control (Standby/On, Volume , Mute, Input select, Dimmer)
Bias adjuster with bias meter |
| Power consumption | 310W (170W/No signal) |
| Dimensions | W440mm x D330mm x H210mm |
| Weight | 30.0kg |
| Accessories | Tube cover, Remote control |
