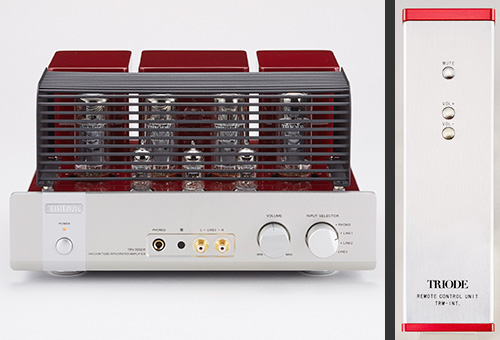

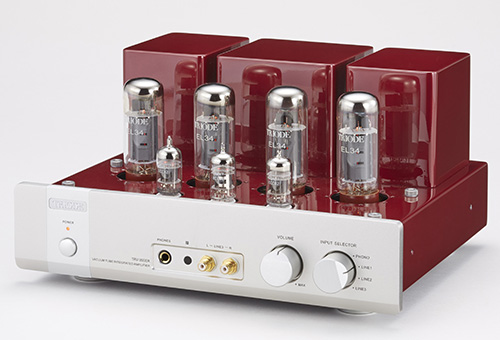

TRV-35SER

EL34 ClassAB push-pull integrated amplifier

Circuit system EL34 ClassAB push-pull integrated amplifier
Tubes EL34*4 , 12AX7*1 , 12AU7*2
Bias Fixed bias
Output power Class AB 35W+35W at 8 ohms
Frequency response 10Hz-60kHz(-3dB)
S/N ratio 90dB
Input sensitivity LINE 700mV , MM 5mV
Input impedance LINE 100k ohm , MM 47k ohm
Input terminals RCA unbalanced*3(LINE1-3) , MM*1
Output terminals REC OUT*1
Speaker output terminals 6 ohms , 8 ohms
Headphone output 6.3mm stereo jack
Equipped components High quality speaker terminal
Other functions Remote control (Volume , Mute)
Power consumption 100W (No signal), 220W (Max)
Dimensions W345mm*D320mm*H185mm
Weight 17kg
Accessories Tube cover , Wooden side plates , Remote control , Spare fuse
