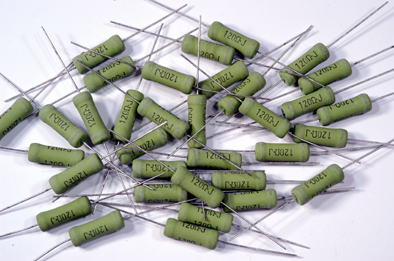

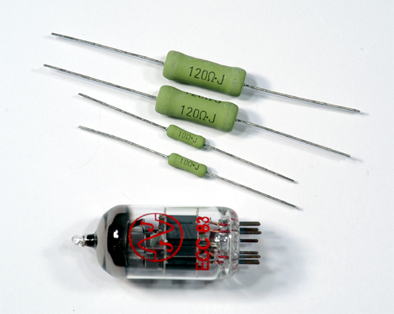

Hi-Grade Carbon Resistors for Top of The Audio!
Made in Japan

Specifications

Material: Carbon Film
R.Range: E-24 class
Wattage: 2W and 5W type
Error Ratings: +/-5% (actually +/-0.5%)
Value Indicate: Charactor
Insulation Material: Silicon Resin
Body Color: Light Green
Body Size: 2W type; D4.2 x L12 / 5W type; D9.0 x L24 (mm)

kind of value

  • ■2 watts class
  • 10/11/12/13/15/16/18/20/22/24/27/30/33/ 36/39/43/47/51/56/62/68/75/82/91/100/110/
    120/130/150/160/180/200/220/240/270/300/ 330/360/390/430/470/510/560/620/680/750/820/ 910 ohm



    1.0/1.1/1.2/1.3/1.5/1.6/1.8/2.0/2.2/2.4/2.7/3.0/ 3.3/3.6/3.9/4.3/4.7/5.1/5.6/6.2/6.8/7.5/8.2/9.1/
    10/11/12/13/15/16/18/20/22/24/27/30/33/ 36/39/43/47/51/56/62/68/75/82/91/100/110/
    120/130/150/160/180/200/220/240/270/300/ 330/360/390/430/470/510 kohm



  • ■5 watts class
  • 2.2/2.4/2.7/3.0/3.3/3.6/3.9/4.3/4.7/5.1/5.6/6.2/
    6.8/7.5/8.2/9.1/10/11/12/13/15/16/18/20/22/
    24/27/30/33/36/39/43/47/51/56/62/68/75/
    82/91/100/110/120/130/150/160/180/200/
    220/240/270/300/330/360/390/430/470/510/560/
    620/680/750/820/910 ohm



    1.0/1.1/1.2/1.3/1.5/1.6/1.8/2.0/2.2/2.4/2.7/
    3.0/3.3/3.6/3.9/4.3/4.7/5.1/5.6/6.2/6.8/7.5/
    8.2/9.1/10/11/12/13/15/16/18/20/22/24/
    27/30/33/36/39/43/47/51/56/62/68/75/82/
    91/100/120/150/200/220/240/270/300/360/470 kohm
    1.0 Mohm
